Project: Mercedes G65 AMG Portal Axle Conversion
Convert Your G55, G550, G63, or G65 G-class into a Mercedes G500 4×4²!
Get the G500 4×4² (aka G550 4×4² in the U.S.) look with the addition of portal axles, fender flares, wheels, and tires. The portal axles, as Mercedes uses on the 6×6 AMG and G500 4×4², add 4 inches of ground clearance. With the longer Eibach Springs and 35-inch tires, you will net about an 8″ lift. With 37″ tires, about a 9″ lift. The client can use their 20″ AMG wheels with 35 or 37-inch tires.
It’s safe, no codes, no maintenance issues, no undue wear-and-tear. The gears inside the portal do all of the work. Maintains all factory suspension components, though we do recommend the KING shocks with the OEM springs (or with the longer Eibach Springs).
We can ship all of the parts you need, including wider fender flares (OEM or non-OEM), to your local shop for installation. Or, we can pick up the vehicle and do the work here, then deliver to your home or office completely finished.
Worldwide Shipping available for the parts, and for complete vehicles. Shipping a completed G-class in 20-ft container to the Middle East, Africa, Asia, or South America is less thank you think — typically $3500-4500.
PHOTO GALLERY
UPGRADES INSTALLED

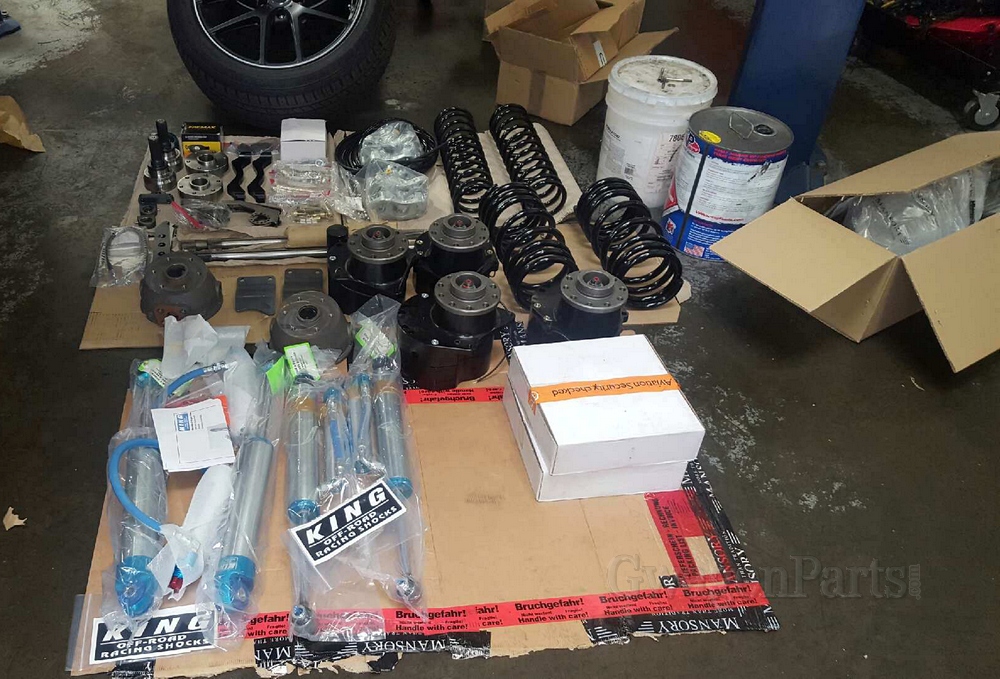

TIBUS 100 MM PORTAL AXLE KIT for G-class W463

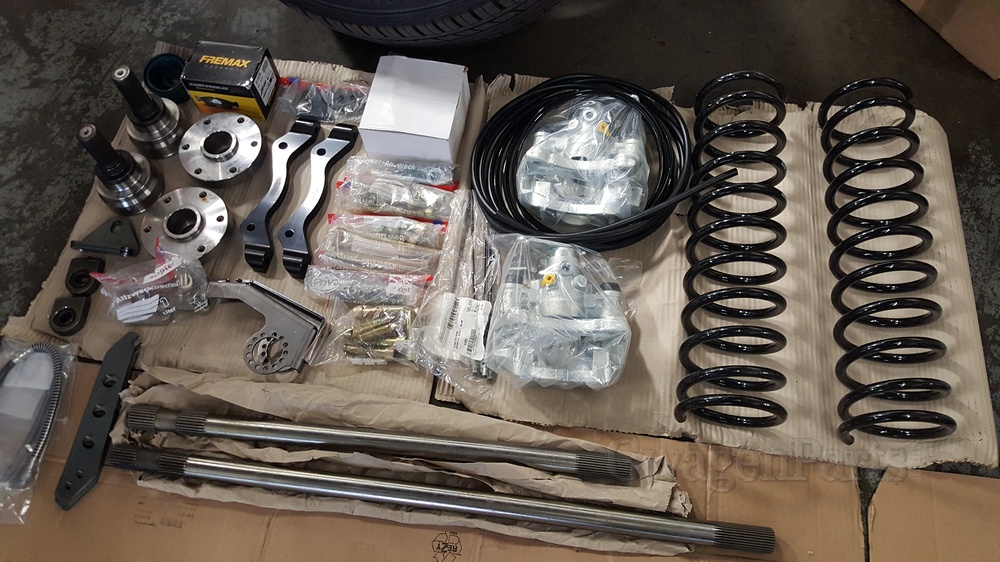

INCLUDES:

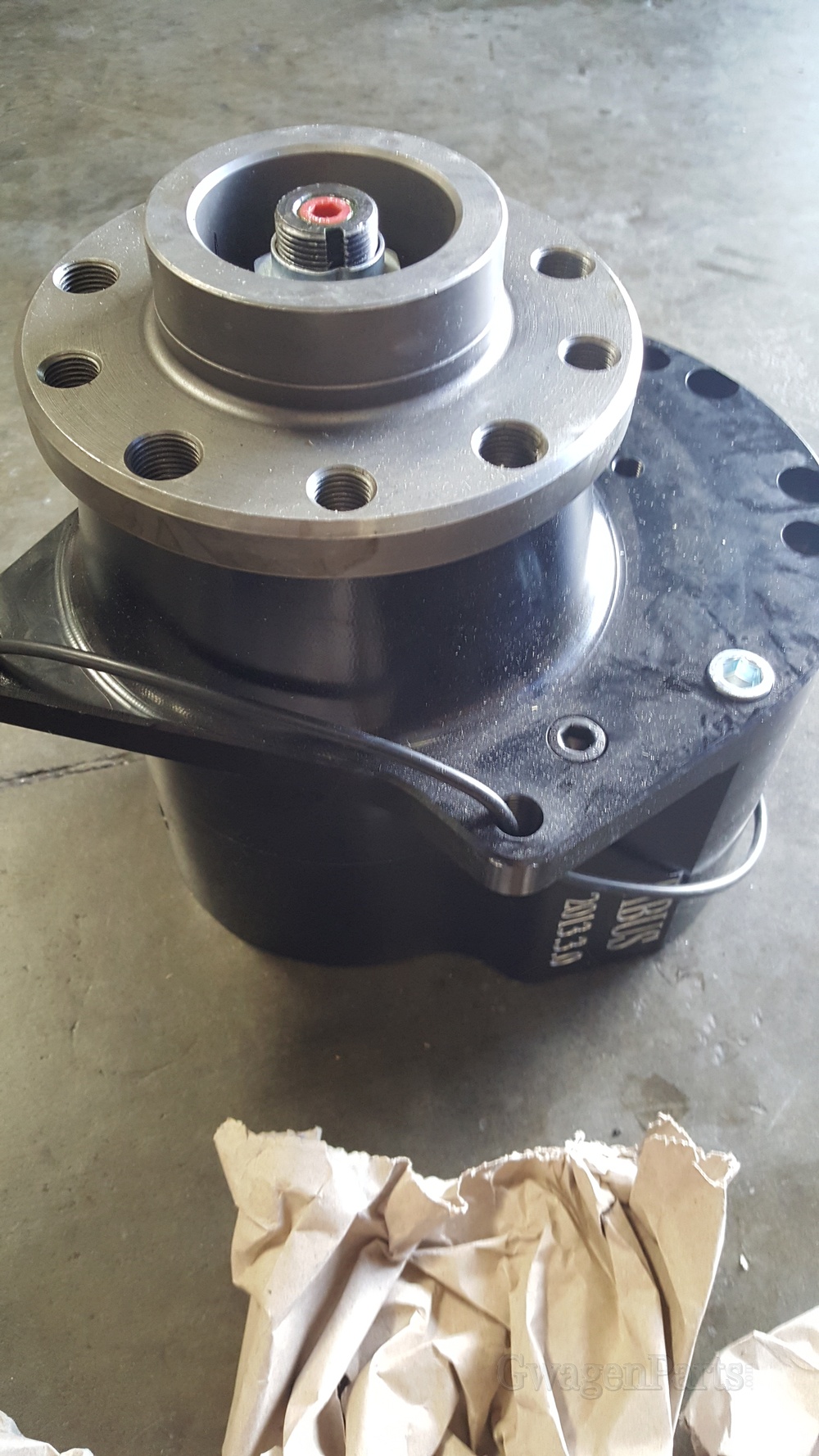

– 4 Portal Boxes with Pre-installed Gears
– 2 Front Outer Steering Knuckles
– 2 Heavy Duty Front CV Joints
– 2 Heavy Duty Rear Axle Shafts
– 2 Rear Brake Calipers with Integrated Parking Brake
– Set of Axle Braces for Front & Rear Axles
– 4 ABS Sensors
– Mounting Bolts
NOTES:
– Scroll to bottom of page for footnotes.
AERODYNAMICS
– Carbon Fiber Front Roof Spoiler/Light Bar with LEDs for G-class W463
– Carbon Fiber Add-on Lip Spoiler (B-style) for G63/65 AMG W463
– LEDs for Carbon Fiber Front Add-on Lip Spoiler without Turn Signal
– Carbon Fiber Front Arch (B-style) for G-class Front Bumper
– Carbon Fiber Font Fender Air Vent for G-class W463
– Carbon Fiber Mirror Covers, Set for G-class W463
– Carbon Fiber Rear Air Intakes (on D-pillar) for G-class W463
EXTERIOR

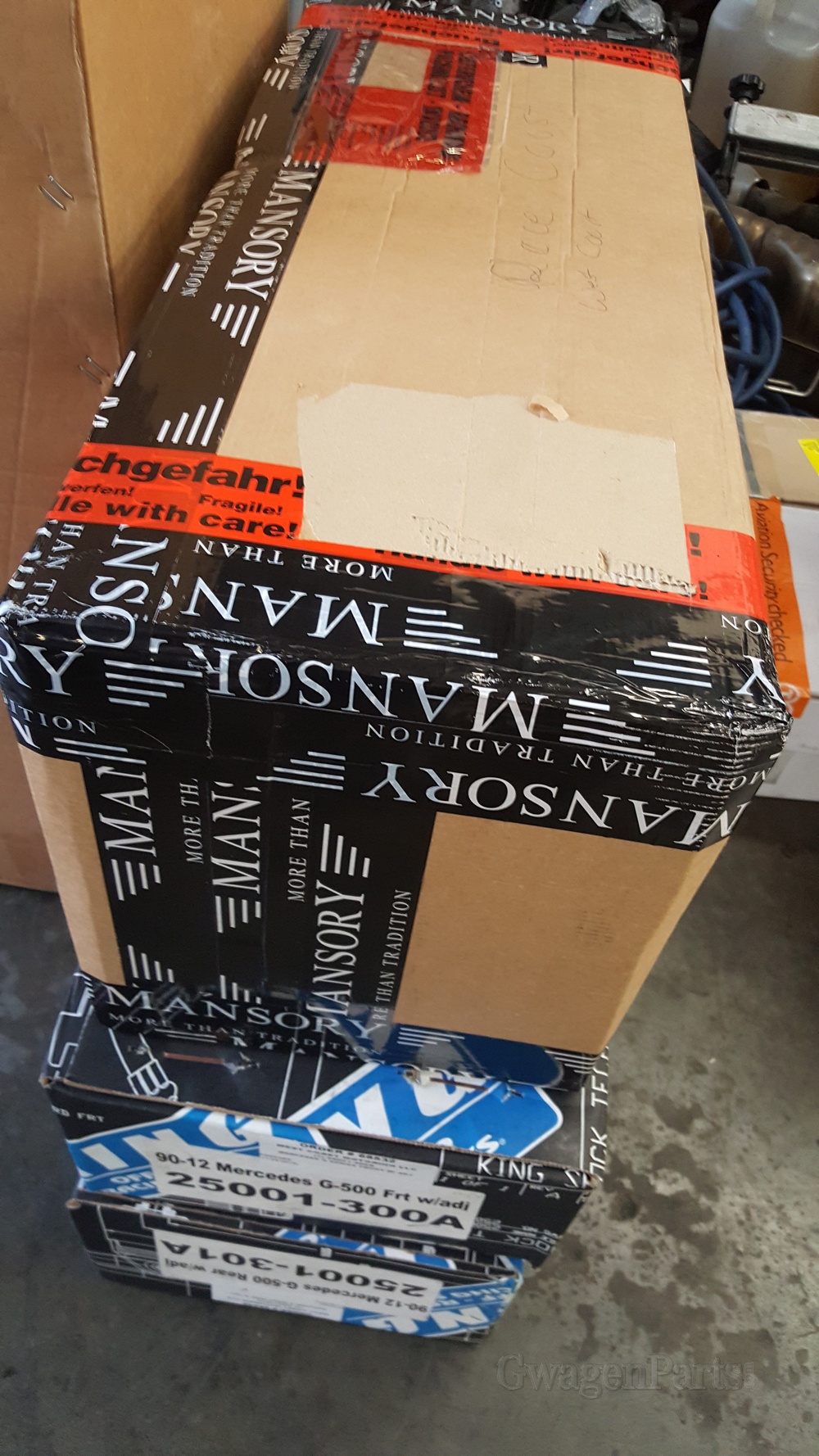

– MANSORY Xenon Headlights with LED Design, 2 parts set – left & right, Black Inlay
– Mercedes-Benz OEM Carbon Fiber Fender Flares for Mercedes G 500 4×4²
– Wheel Housing Fender Liners for Widened Fender Flares, Set of 4
– BRABUS Electric Entry Assist for Base MB G500 4×4 and G63 6×6, in combination with Serial or BRABUS Sport Exhaust (Front Doors)
PROGRAMMING
– Recalibrate with STAR tool for 37-inch Tires
SUSPSENSION
– Eibach Spring Kit for Mercedes G-class with normal axle loads, Lift 40-50 mm

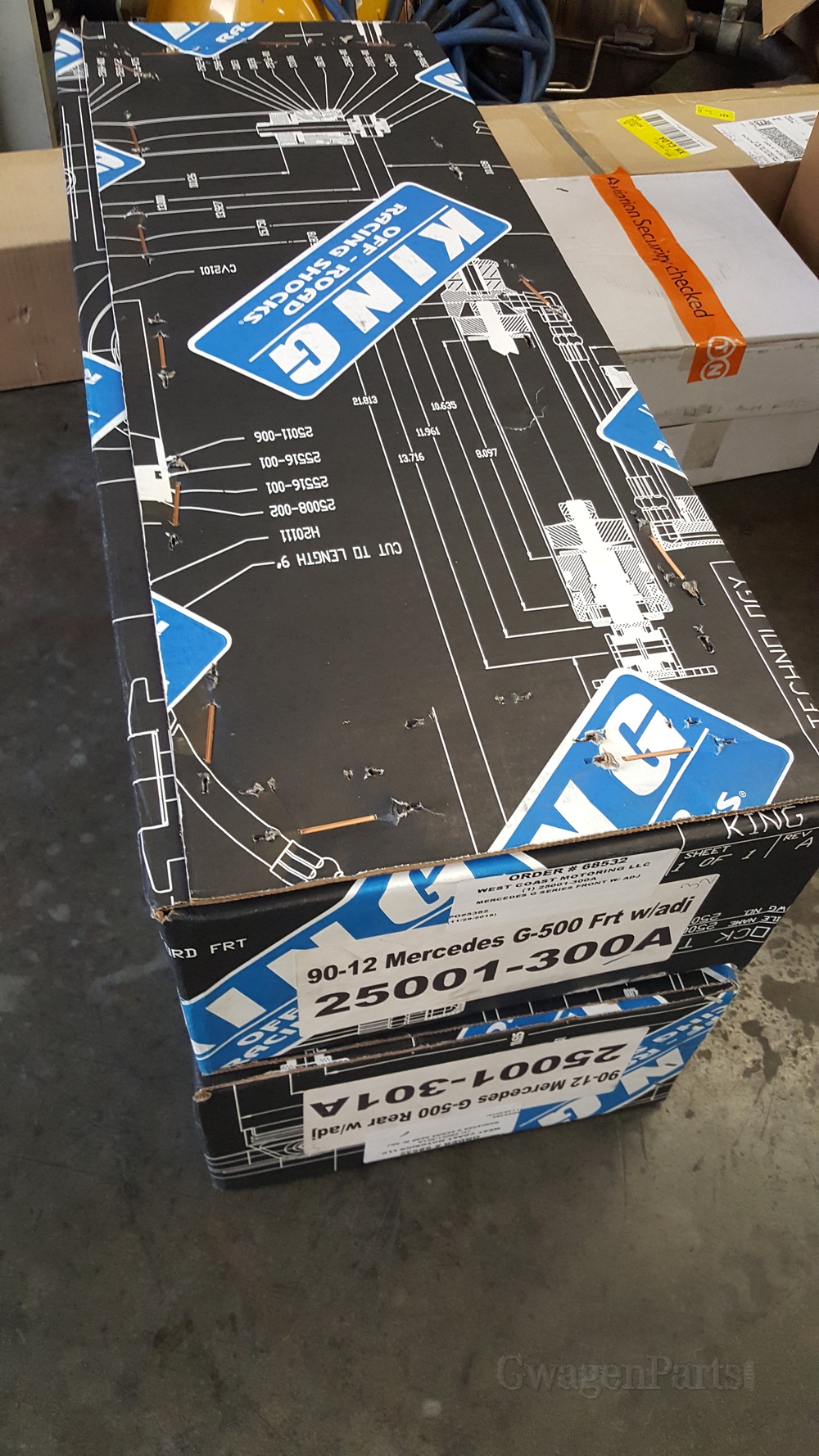

– 2.5-inch KING Performance Racing Shocks, OEM Replacement for Mercedes G-class W463, External Oil Reservoir and 20 Compression Settings to Adjust Ride, Front & Rear
WHEELS & TIRES

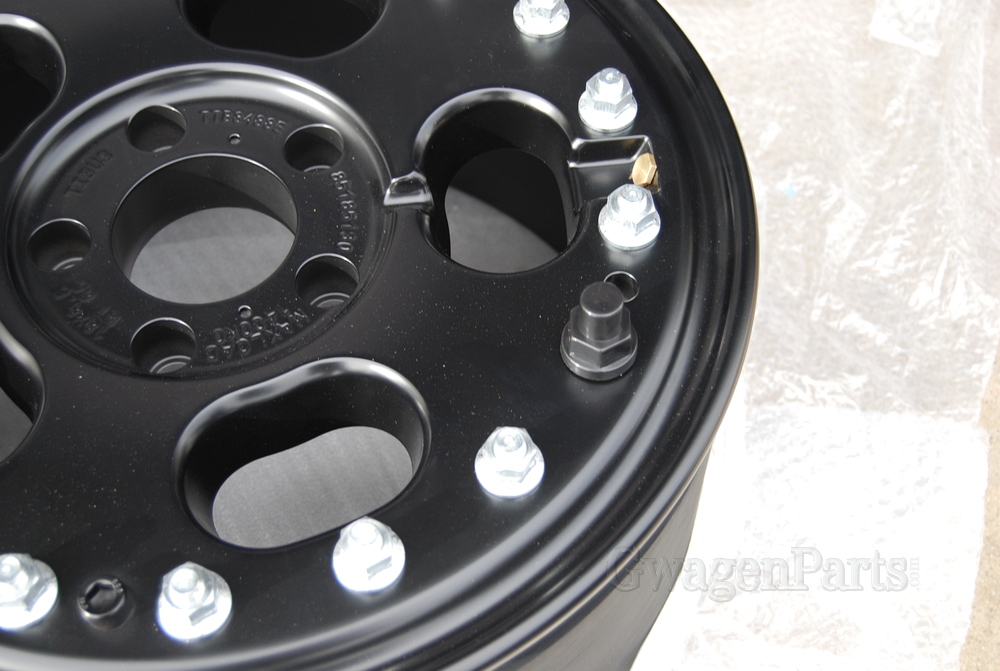

– TIBUS Aluminum Beadlock Wheels in Matte Black 9Jx18″ et 20 (use OEM Center Cap and TPMS)
– Nitto Ridge Grappler 37 x 12.5 R18 (stock 295/40-21 = 30.29″)
– Disassemble, Powdercoat Wheels in Gloss Black, Reassemble
– Custom Pinstriping, Gloss Red
– SCHRDR 433MHZ Sensor for Mercedes
– Mount & Balance Tires on Beadlock Wheels with TPM Sensors
PAINT
– Powdercoat Stainless Steel Bumper Covers
– Powdercoat Front Skid Plate in Gloss Black

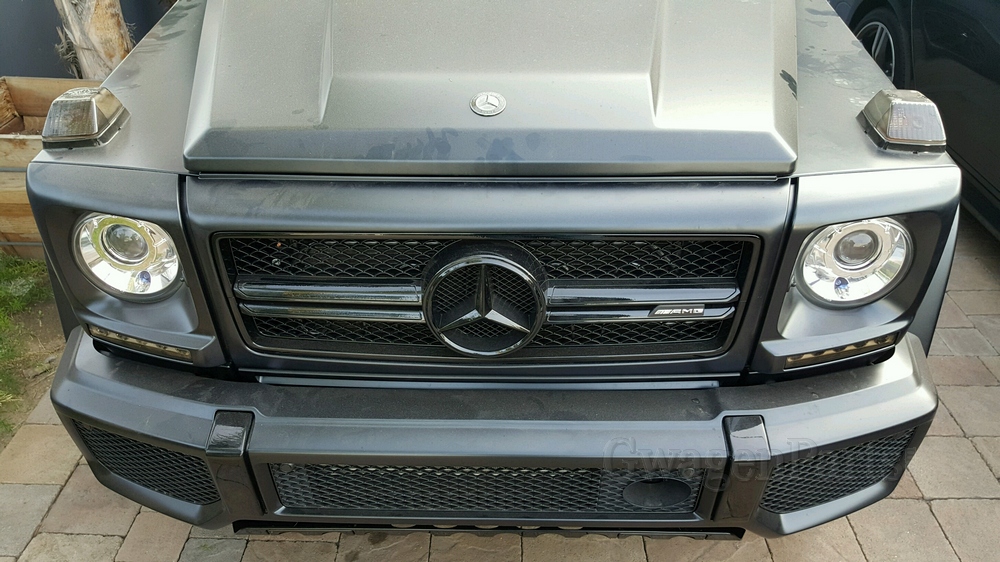

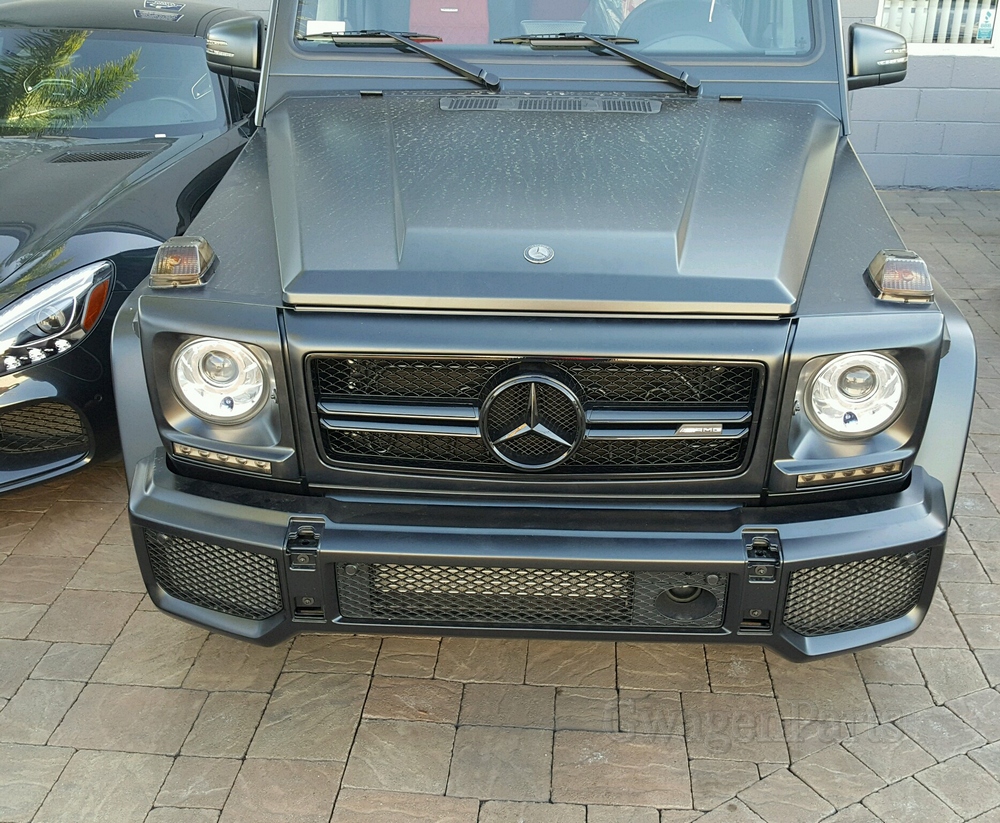

– Paint Chrome on Grille and MB Star Gloss Black
– Powdercoat Running Boards in Gloss Black
– Powdercoat Exhaust Tips in Gloss Black
– Replace all logos/emblems (V12 Bi-turbo x 2, ///AMG, G65, Hood Emblem) in Gloss Black (includes new OEM Emblems)
– AMG Emblem on Front Grille Hand-painted in Gloss Red
– Smoke OEM LED’s in Bezel below Headlight
– Smoke LEDs in Carbon Fiber Front Lip Spoiler

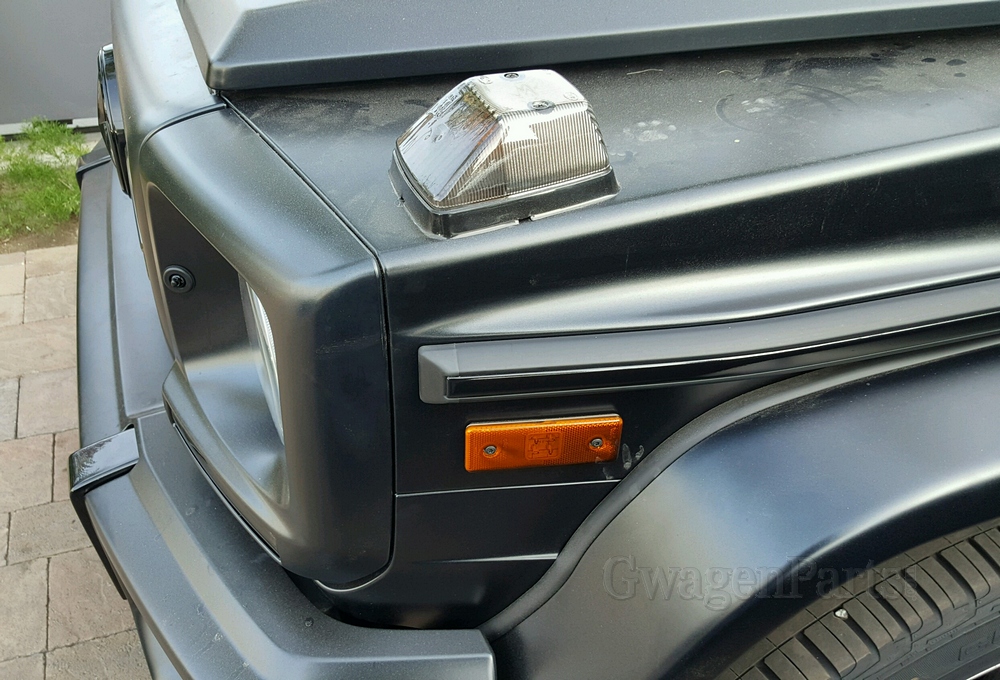

– Smoke Turn Signals on Top of Fender

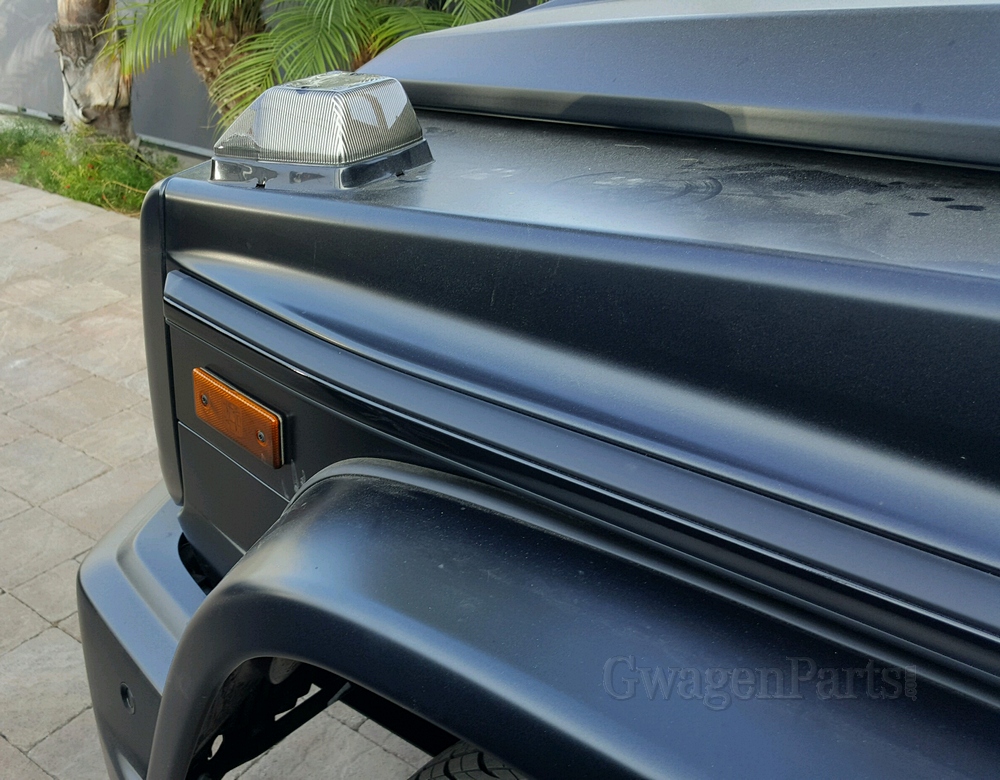

– Smoke Orange Reflectors on Front Fenders

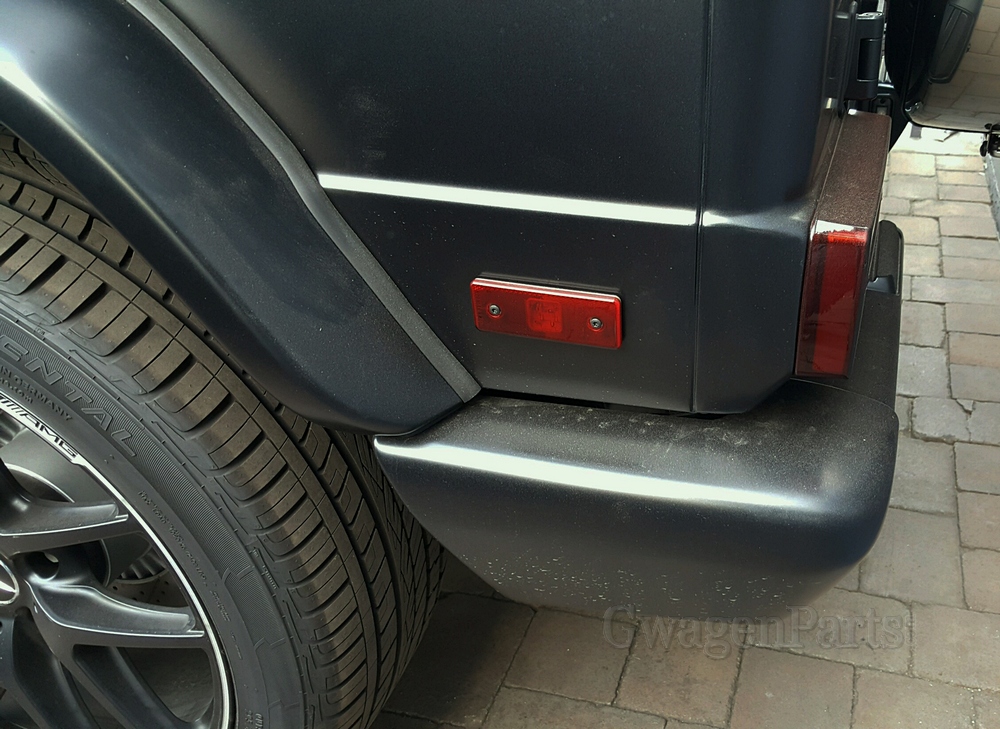

– Smoke Red Reflectors on Rear Quater Panels
– Smoke Red/White Lights in Rear Bumper
– Smoke Taillights

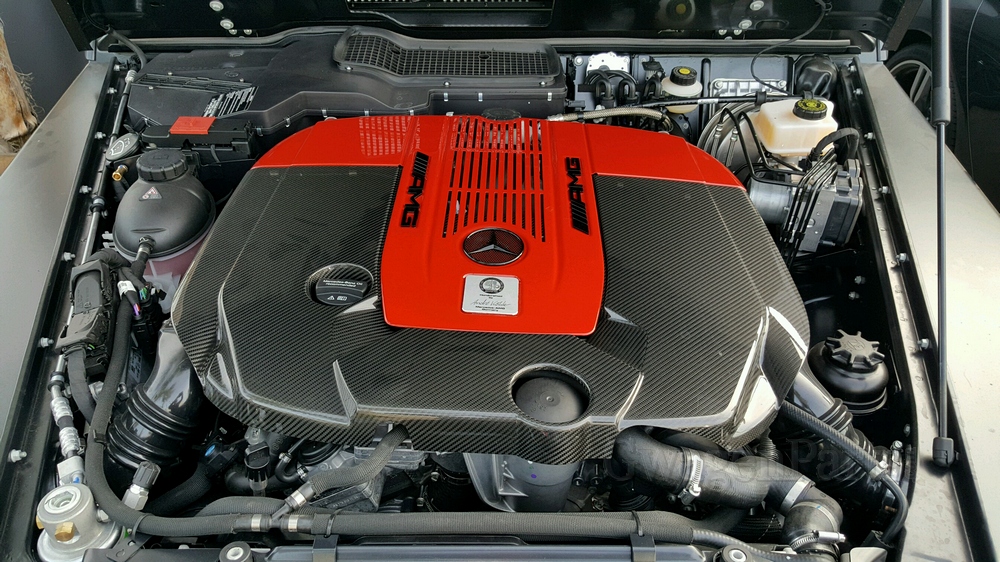

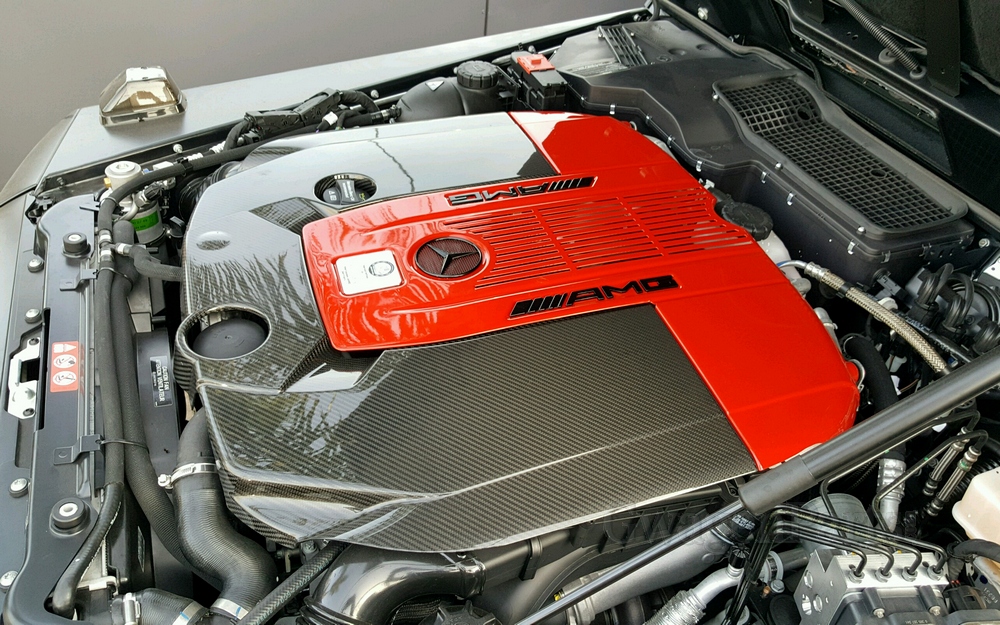

– Engine Cover in Gloss Red
INSTALLATION

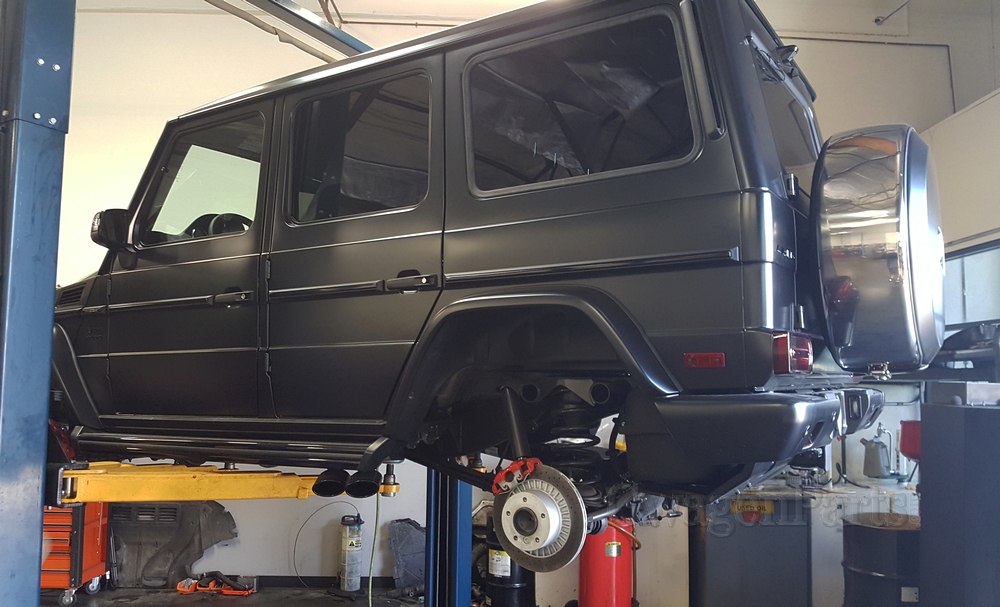

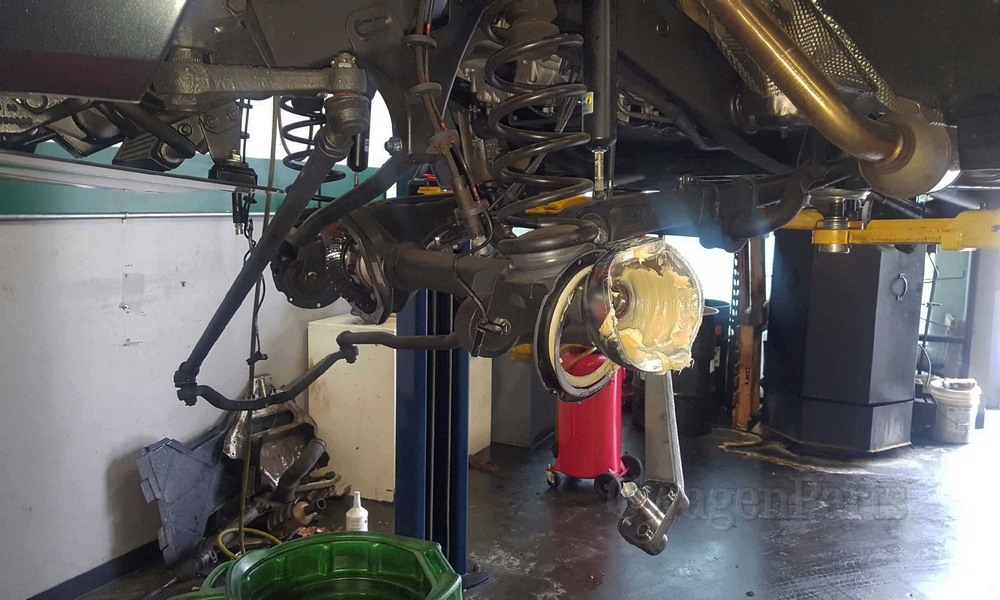

– Installation of Portal Axle Kit
– Installation & Wiring of Carbon Fiber Front Lip, LEDs, Add-on Bumper Spoiler & Roof Spoiler w/ LEDs
– Installation of Carbon Fiber Fender Flares and Fender Liners
– Installation of Front/Rear Springs & Shocks
– Fabricate Bracket to Hold Spare Wheel & Tire
PHOTO GALLERY

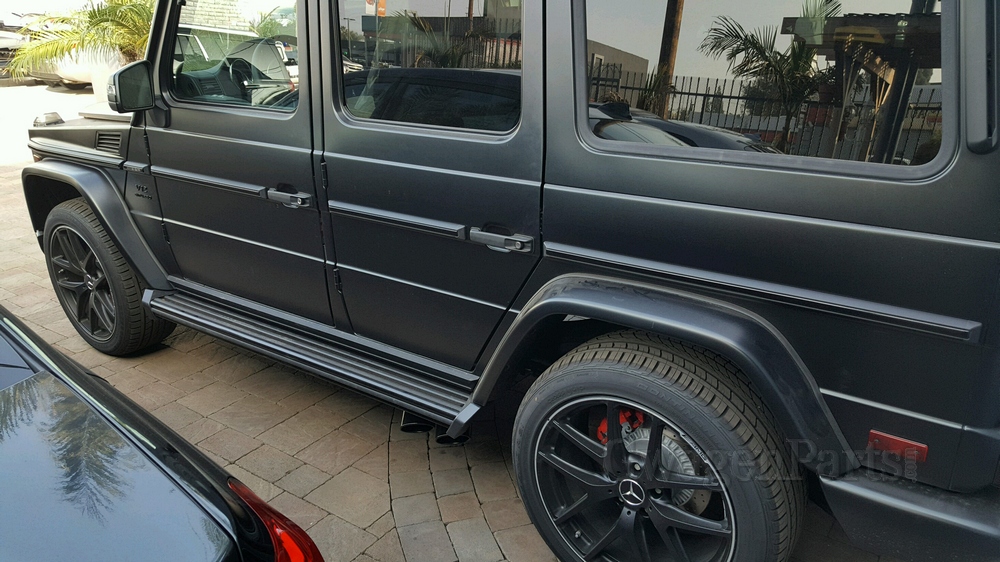

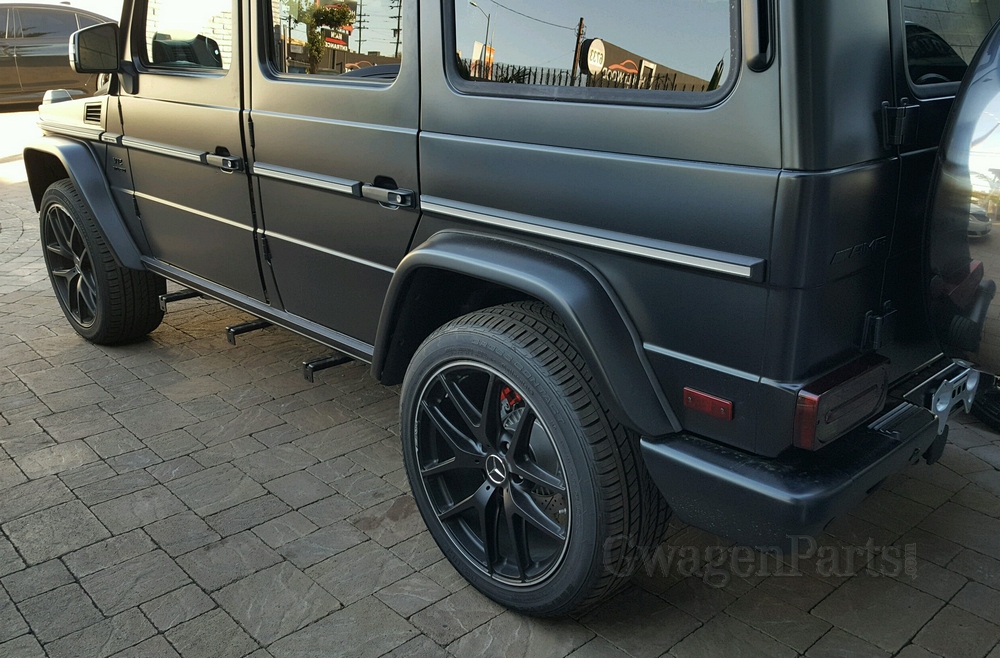

With this package, you can now give your G55, G550, G63 AMG, or G65 AMG the look of the G500 4×4² with a net lift of 9 inches, OEM Fender Flares, Hutchinson Beadlock Wheels, LED Light Bar for the Roof, and 37-inch tires!
Click here for more information on the Portal Axle for vehicles with less than 500 HP, and here for vehicles with more than 500 HP.
This page includes most of the equipment, and options, you might consider with the portal axle conversion: Optional Equipment for Lifted G-wagens
