Mercedes-Benz G55 AMG: Perfect Platform for Portal Axle Conversion
Many G-class owners are being faced with an extremely tough decision: spend $50k upgrading the G55 AMG or G63 AMG the already own, or spend $250k on a G550 4×4². There are definitely benefits to picking up a Squared with a few thousand miles, but it’s not an AMG model. And if you own, or nearly own, your current G-class, you many think twice about writing a $250k check to get a beefed up version of what you already have.
Okay, so let’s be fair. The LeTech portal axle conversion (same as what’s used in the Mercedes G500 4×4² and G550 4×4²) is $69,900 installed. The Tibus portal axle conversion we’re generally using is $24,900 for cars with over 500 HP. So spending around $50k gets you the Tibus portal axle conversion, a 4″ suspension lift to sit as high as the G550 4×4², carbon fiber fender flares, carbon fiber roof spoiler, 37″ tires, and installation.
At that point, there are only a few small differences between the conversion and the original G550 4×4². For example, the running lights on the roof spoiler and on the rear, the spacers between the side markers and the mirrors, and most noticeably, the dual shocks. But good news! We have a dual shock conversion that will make your vehicle look almost identical to the G550 4×4² — other than the fact that, since it’s only good for a 2″ lift, you will sitting about 2″ lower than the Squared at a more garage-friendly height. The original vehicle also has the rear tube bumper assembly. We typically sell the less bulky European version: rear guard and rear tube bumper. We also carry an aftermarket version of the rear guard and rear tube bumper you can see here.

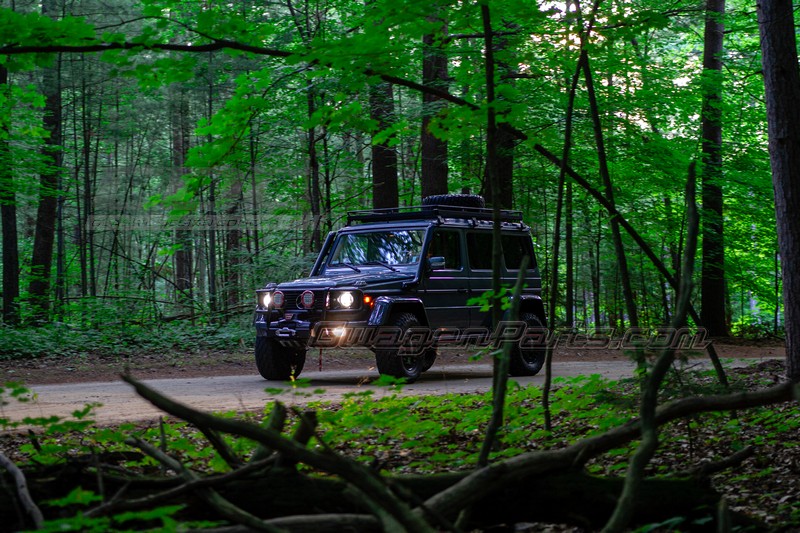

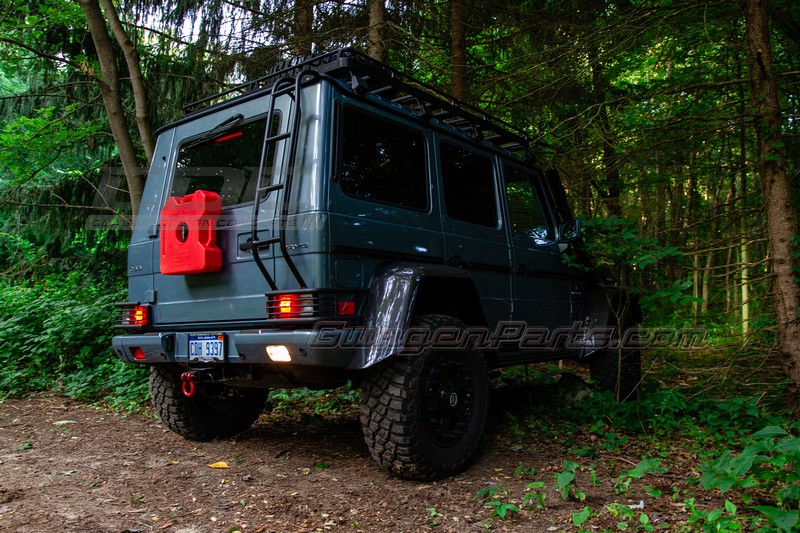

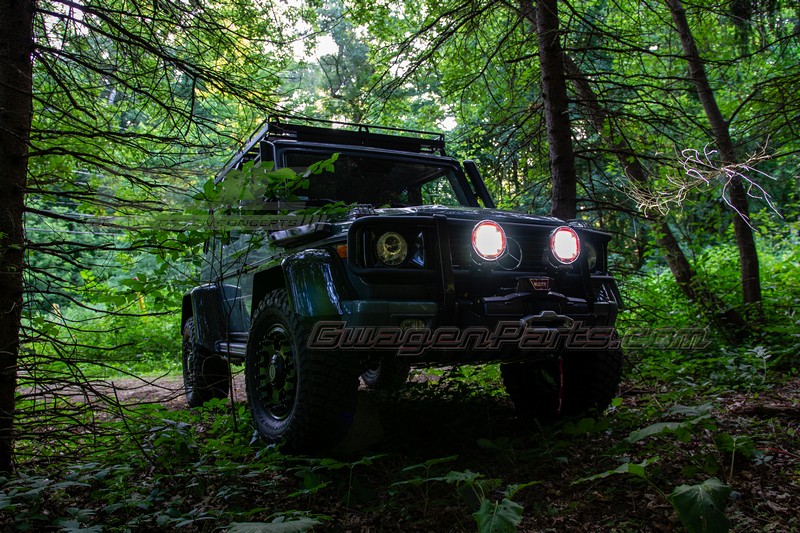

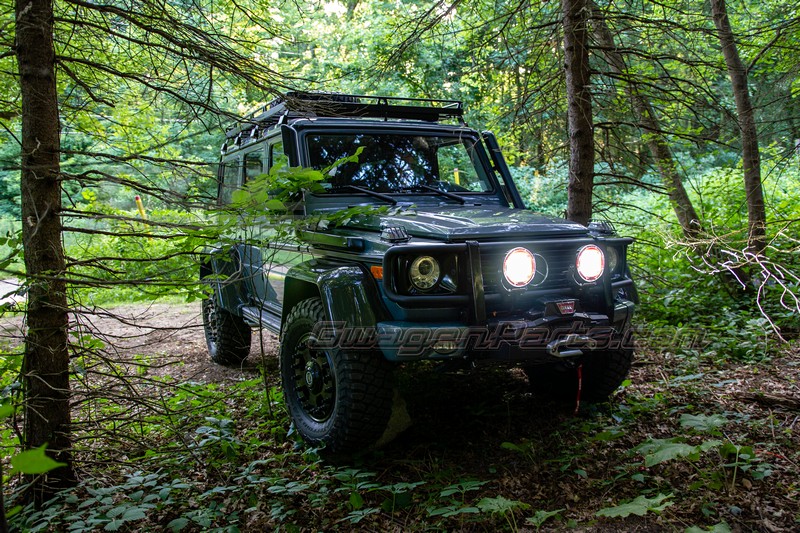

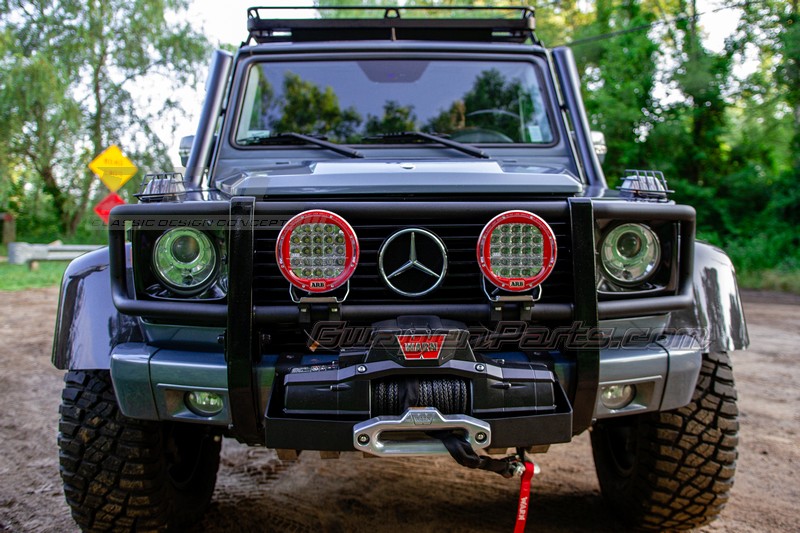

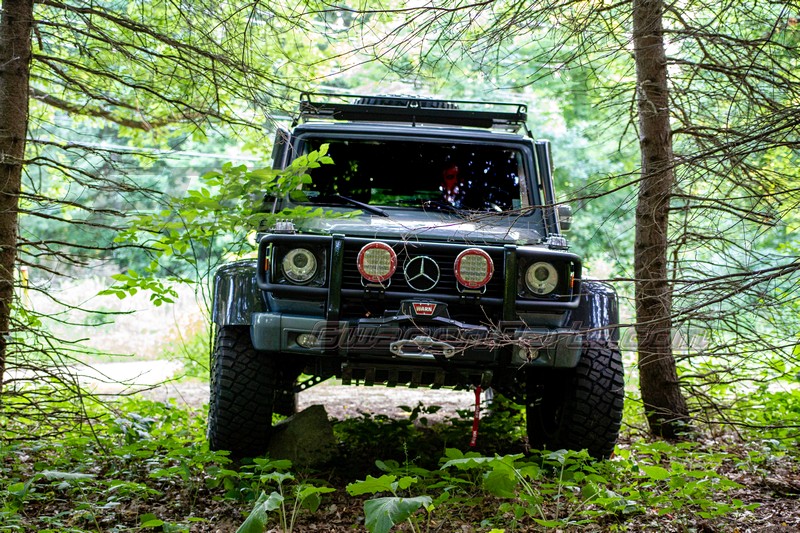

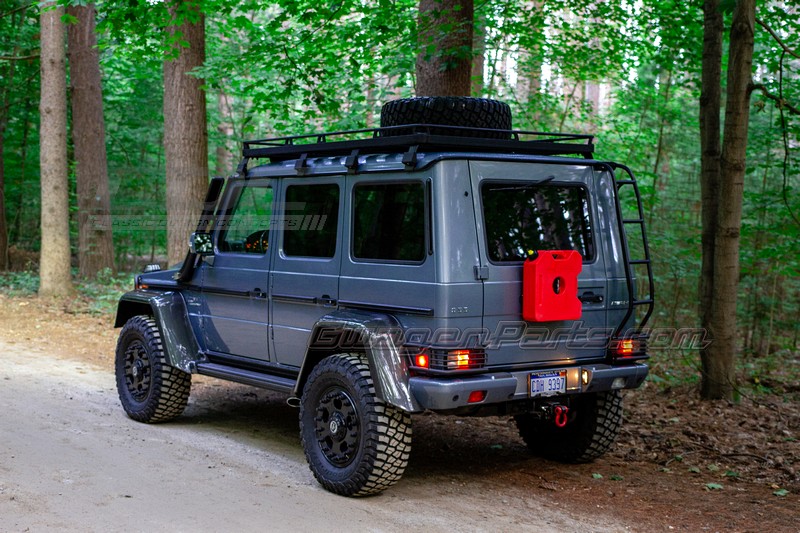

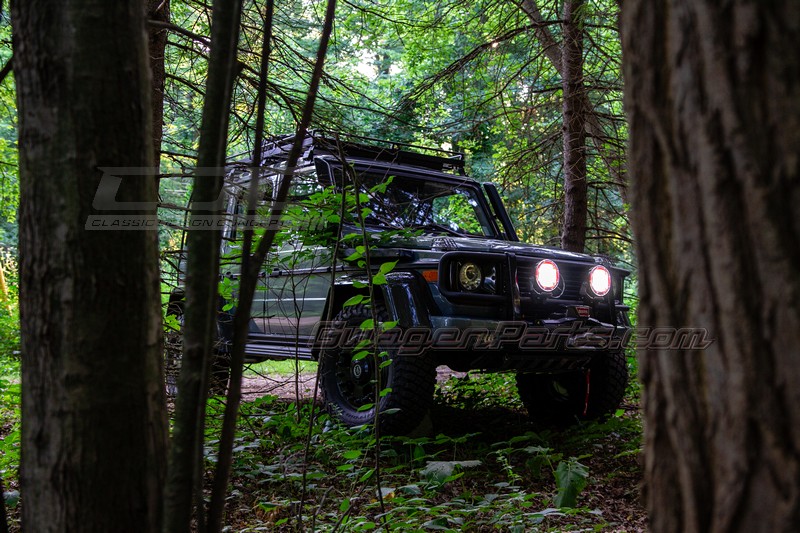

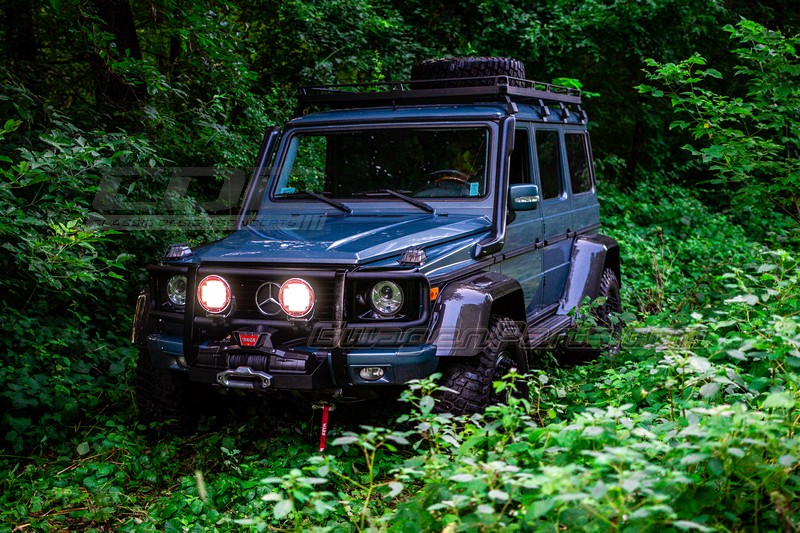

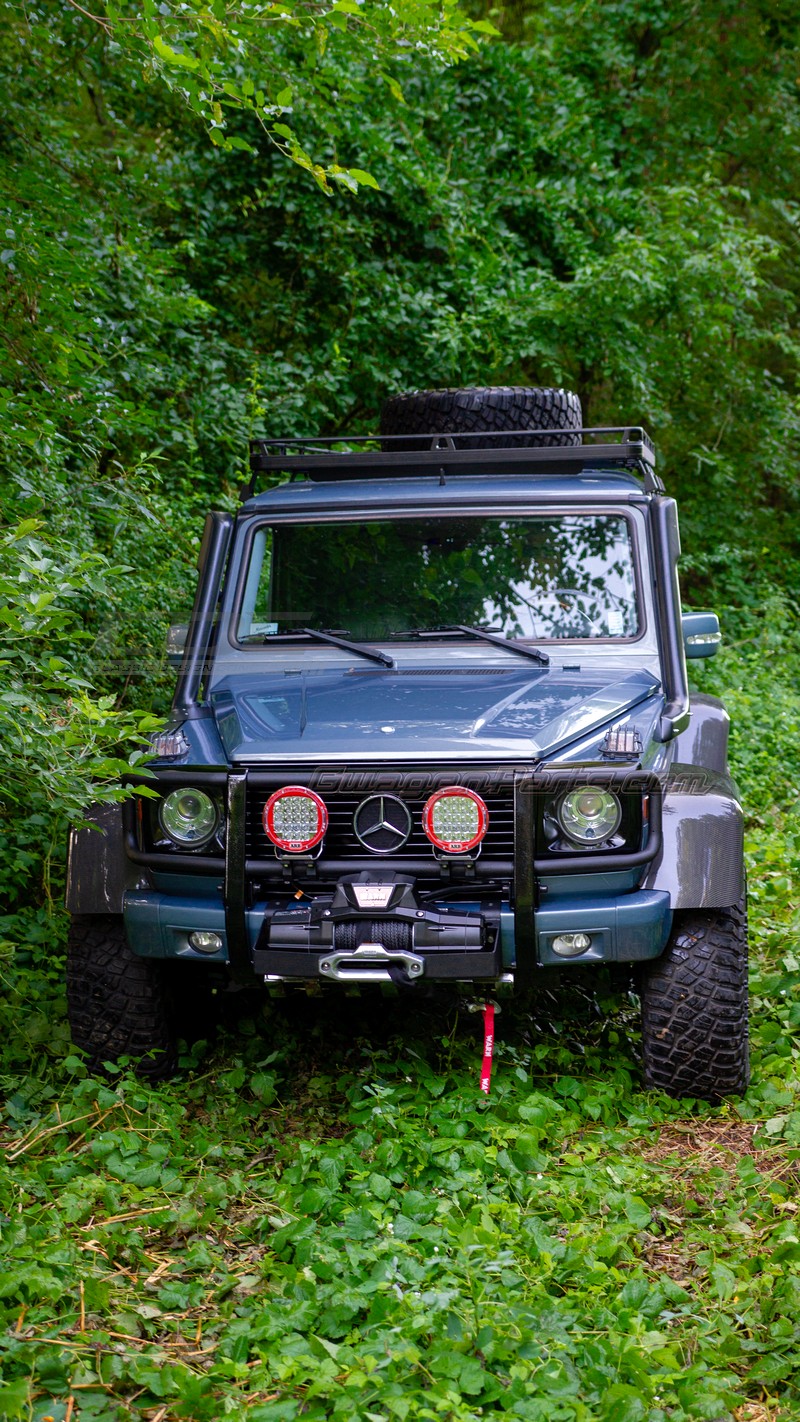

Thanks to Classic Design Concepts (CDC) in Milford, MI for putting together this awesome 4×4² conversion!
GEN 2 PORTAL AXLE CONVERSION – 125MM LIFT
– 4 Portal Boxes with Pre-installed Gears
– 2 Front Outer Steering Knuckles
– 2 Heavy Duty Front CV Joints
– 2 Heavy Duty Rear Axle Shafts
– 2 Rear Brake Calipers with Integrated Parking Brake
– Set of Axle Braces for Front & Rear Axles
– 4 ABS Sensors
– Mounting Bolts
– Manufacturer’s 1-yr Limited Warranty (against defects in material and craftsmanship)
– For vehicles with over 500 HP
– Brake Caliper Adapter required for some AMG vehicles
SHOCKS:
– DTD-spec KING 2.5 Performance Shocks with External Oil Reservoir and 20 Compression Settings to Adjust Ride, Front Set
– DTD-spec KING 2.5 Performance Shocks with External Oil Reservoir and 20 Compression Settings to Adjust Ride, Rear Set
FENDER FLARES:
– Mercedes 4×4 OEM-style Carbon Fiber Fender Flares
ROOF RACK:
– Front Runner Slimline II Roof Rack
– Full-Size with Standard Legs
– Front Runner Rail Kit for Slimline II
– Expedition Tubes
– Expedition Joints
– Expedition Corners
– Front Runner Spare Wheel Clamp / Low Profile
– Roof Access Ladder for G-class, up to MY 2009
WHEELS:
– 5 TIBUS Aluminum Bead lock Wheels in Matte Black 9Jx18″ et 60
– 20 Black Lug Bolts
– Spare Tire Plugs [Paintable]
EXTERIOR:
– Snorkel for V Engines with Side Air Intakes
– Air intake pipe with lateral air intake, fiberglass-polyester, black.
– System consists of two tubes, one right (as with the G 290 TD) and one left (as with the 463). This enables intake of cleaner and cooler combustion air through a raised intake position and protects against sudden water ingress into the air intake.
– Material: Hand-laminated GRP, structured finish, black.
– Delivery includes fittings.
– Please specify model: G 500, G 400 CDI,G 320 V6 or G 320 CDI.
– An opening has to be cut into the fender and the engine compartment partition panel respectively when installing this snorkel in a G 320 R6, G 300 TD, in some G 461 and all G 460.
SPACERS:
– H&R Trak+ Spacer Kit for G-class W463 5×130, Center Bore 84, 14×1.5 Thread Type, DRA Spacer Type, 31mm per Side (62mm total), Set of 2
INTERIOR:
– Bluetooth Adapter for Android or iOS
